URANINITE

    Class : Oxides and hydroxides
    Subclass : Oxides
    Crystal system : Cubic
    Chemistry : UO2
    Rarity : Common


Uraninite is the natural oxide of uranium, but some confusion remains between the terms "uraninite" and "pitchblende". The international mineralogical nomenclature recommends the term uraninite to designate the natural oxide of tetravalent uranium in all its facies. However, according to Dana (1861), the term uraninite is still too often reserved in the literature for facies with clear crystalline forms, the term pitchblende designating in contrast the collomorphic facies of uranium oxide. Its name comes from its chemical composition. Uraninite is much more common in its collomorphic facies (pitchblende), and then constitutes aggregates of spherulites whose dimensions can exceed 20 cm in diameter, forming hummocky masses. While automorphic uraninite is predominantly magmatic, pitchblende is a facies of uraninite of hydrothermal origin, common in many veins and in detrital sedimentary rocks. Whatever its facies, uraninite is black in color and has a submetallic to resinous luster as well as a conchoidal fracture. It is characterized by a high density (variable according to the oxidation state of uranium : from 7.5 to more than 10), and obviously by a very high radioactivity. From a chemical point of view, the structural relationship of uraninite with thorianite explains the existence of a solid solution between these two minerals. It has been proven that this was artificially continuous. Highly alterable at outcrops, uraninite epigenizes or transforms into an impressive procession of powdery minerals of yellow to orange hue, rarely black, collectively designated under the name of "gummites". It is the main ore of uranium.

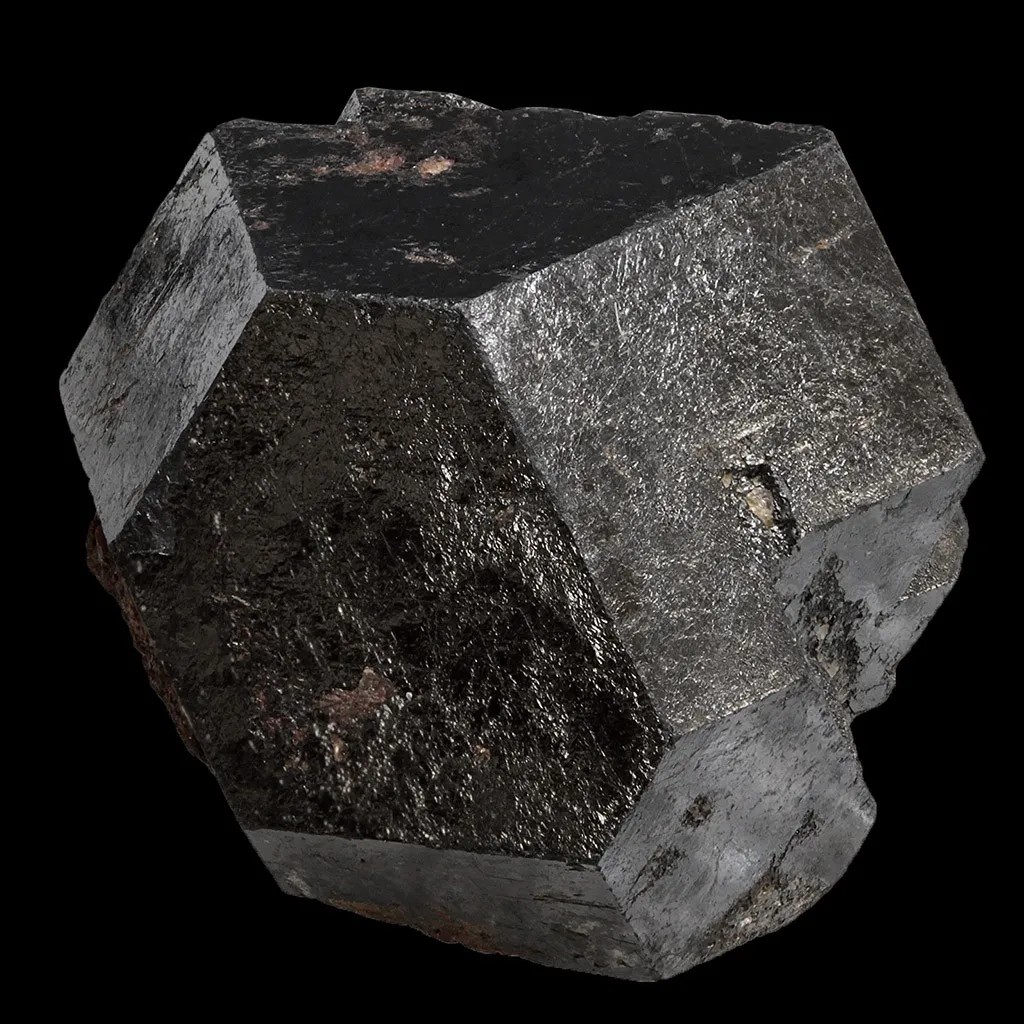

Main photo : Uraninite from Shinkolobwe Mine, D.R. Congo © Eugene & Sharon Cisneros

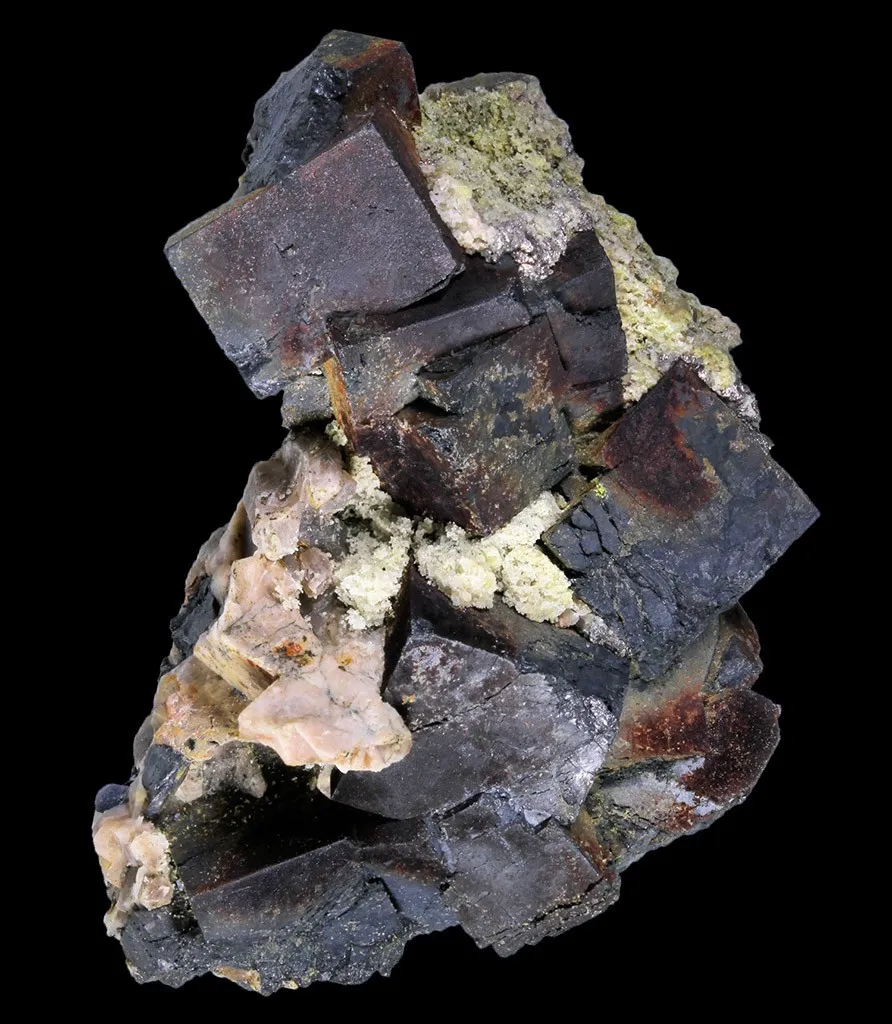

Uraninite from Topsham, Maine, USA © Harold Moritz

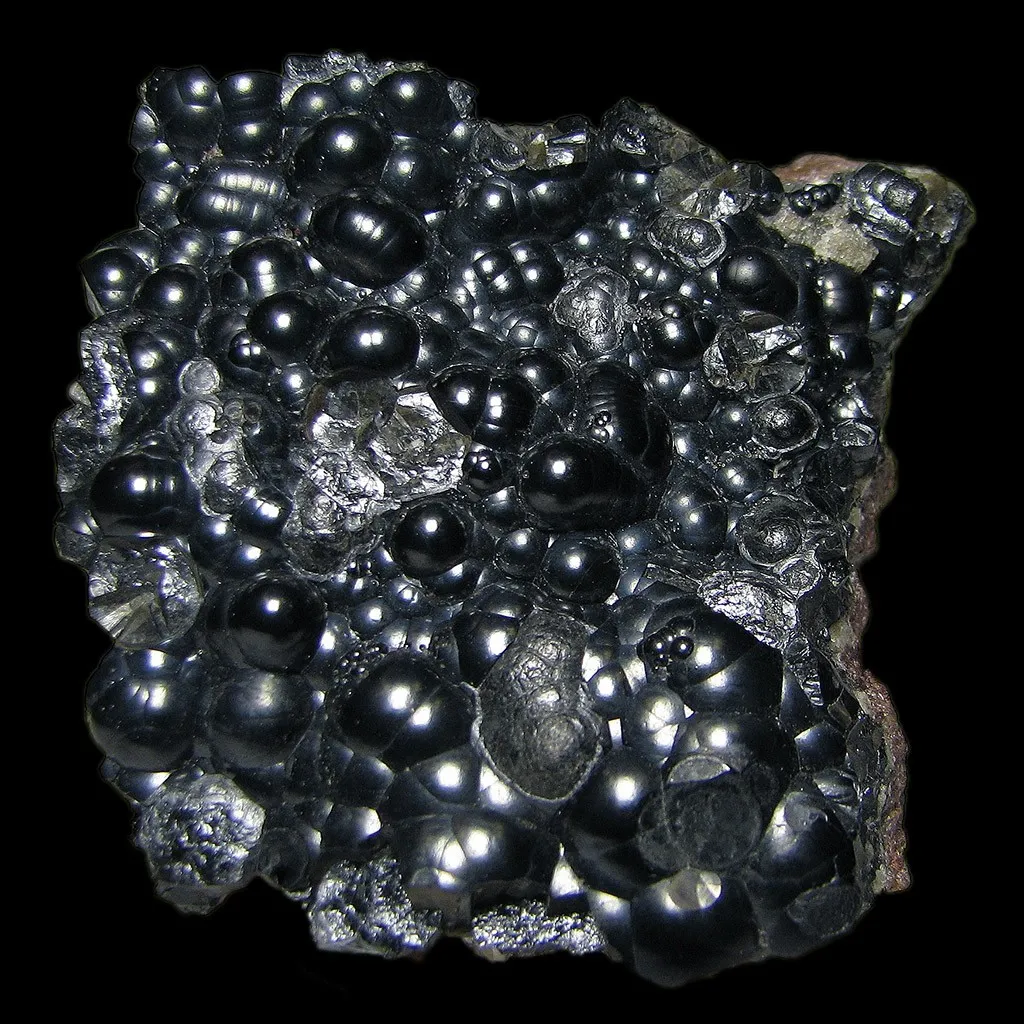

Botryoidal uraninite from Pribram, Czech Republic © Christopher O'Neill

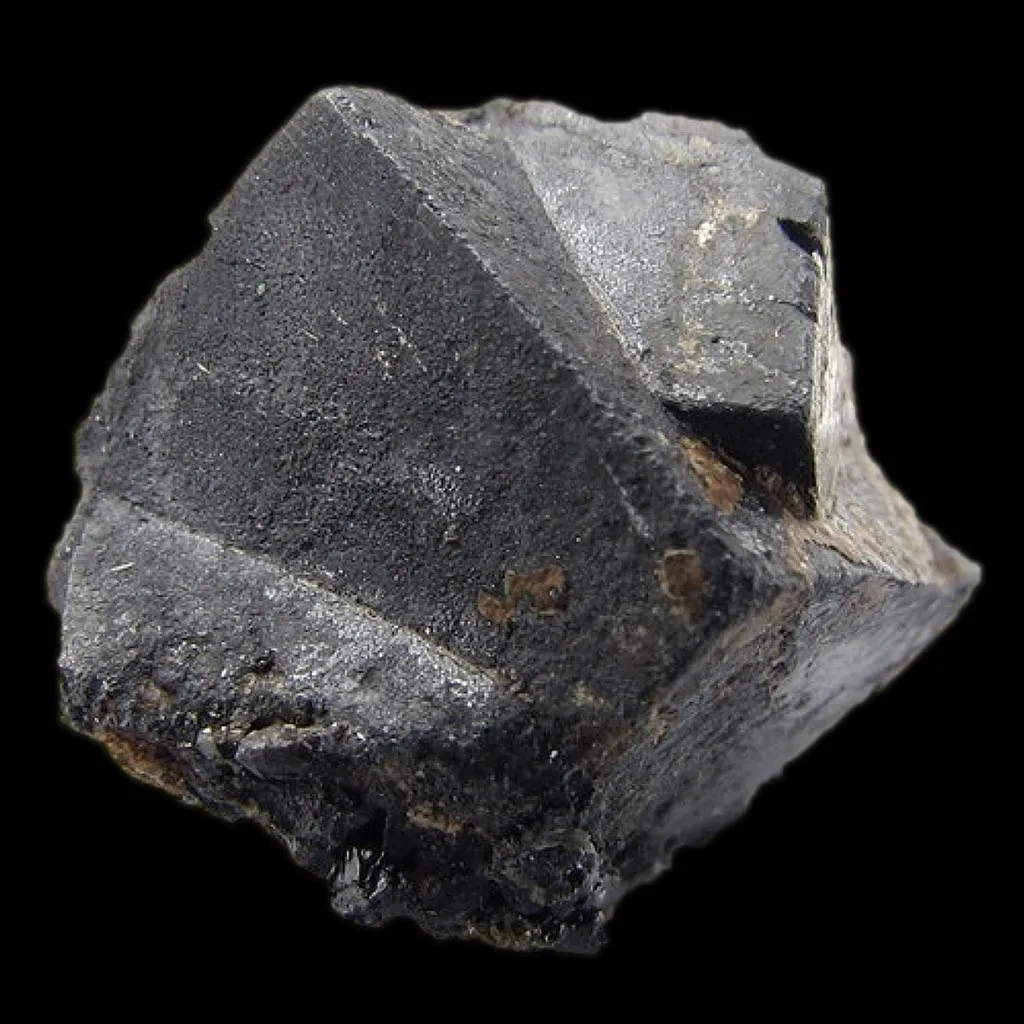

Twinned uraninite from Cardiff, Ontario, Canada © Maggie Wilson

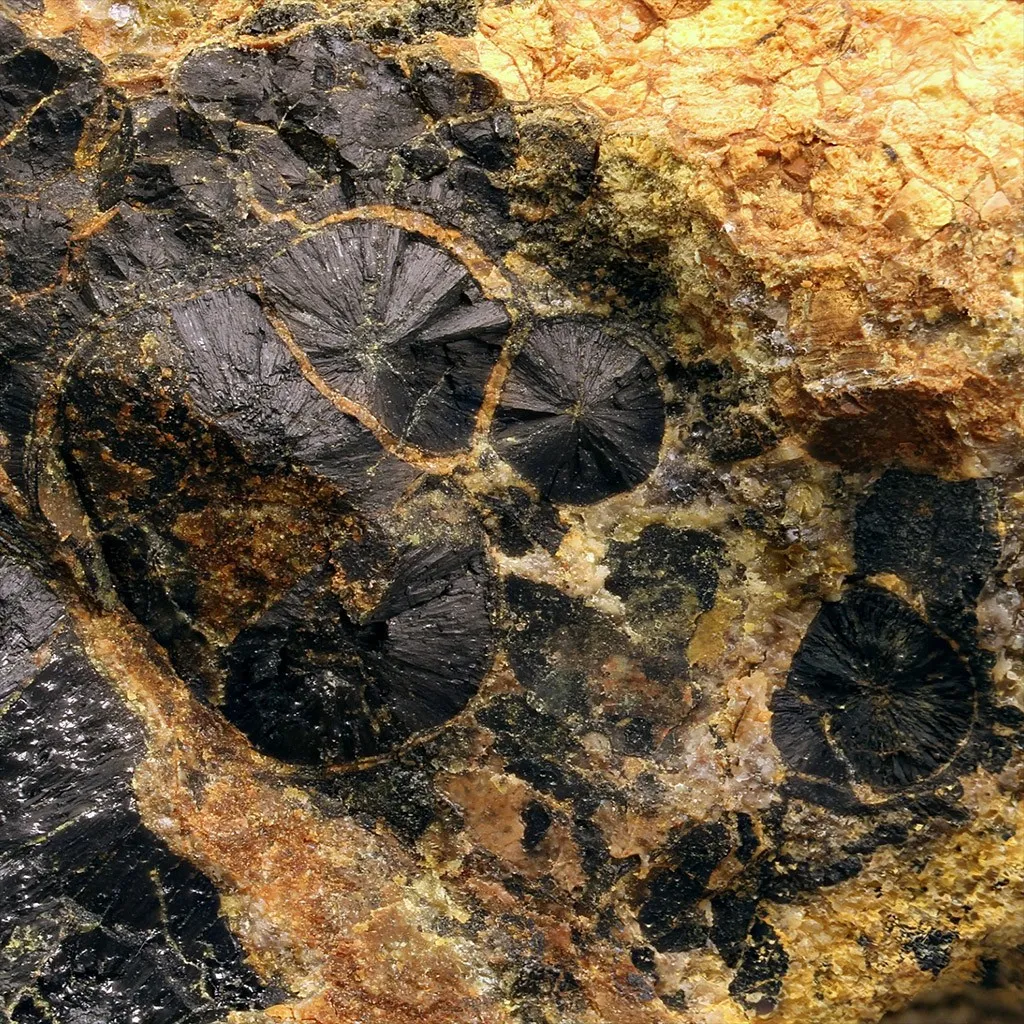

Uraninite from Chaméane, Puy-de-Dôme, France © Michel Bretheau

Uraninite in the World

Macroscopic crystals of uraninite are relatively rare. Superb groups of crystals reaching 4 cm individually were extracted in the 1930's from the famous Congolese deposit of Shinkolobwe (Kantanga). However, they are strongly altered in secondary minerals. The largest known crystals of uraninite are cubo-octahedra measuring up to 20 cm on an edge and weighing more than 40 kg ; they were discovered in Spanish pegmatites (Fuente Ovejuna and Hornachuelos) and South African pegmatites (Bokseputs). The Canadian deposit of Wilberforce (Ontario) has magnificent cubo-octahedra of 7 cm included in calcite. Good cubic crystals also come from Topsham (Maine) and Grafton Center (New Hampshire). Pitchblende is an infinitely more common facies than uraninite in the majority of uranium deposits. Those from Katanga, Czech Republic have provided spherulites several centimetres in diameter.

Uraninite in France

In France, uraninite is known in small millimetre crystals at Château-Lambert (Haut-Saône). French deposits have provided some of the world's finest pitchblende spherulites in the small Armorican mines of Pen-ar-Ran (Loire-Atlantique, specimen with a radius of 15 cm), and Quistiave (Morbihan, epigenised specimens in gummite with a diameter of 20 cm). It is also known at Chaméane (Puy-de-Dôme).

Twinning

Twinning is known on {111}.

Fakes and treatments

No fakes listed for this mineral species.



Hardness : 5 to 6
Density : 7.5 to 10.95
Fracture : Irregular to conchoidal
Streak : Brown-black, gray, green


TP : Opaque
RI : -
Birefringence : 0
Optical character : None
Pleochroism : None
Fluorescence : None


Solubility : Acids

Magnetism : ParamagneticRadioactivity : Very strong
